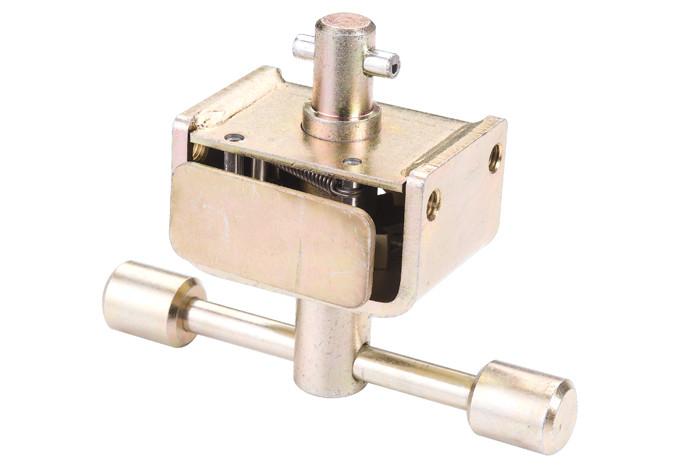

R10 Ratchet Tensioner

- Originally designed for Southfield Coachworks Ltd

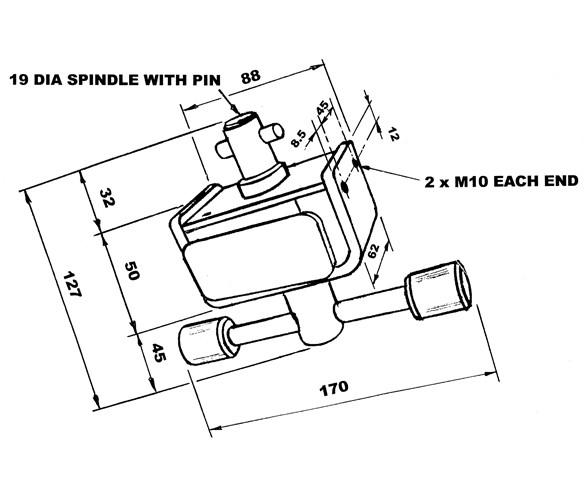

- 19mm dia pinned spindle
- Drop-down handle
- Alternative handles provided (see R.10)
- Zinc plate, chrome passivate and finigard 401 finish
- All measurements are in mm
- Lubricate weekly


On assembly, all tensioners are subject to an extensive quality inspection before leaving the factory. Products are finished with a PS100 passivate sealant, which added to the zinc plating, not only looks good, but gives a better resistance to salt water spray.
