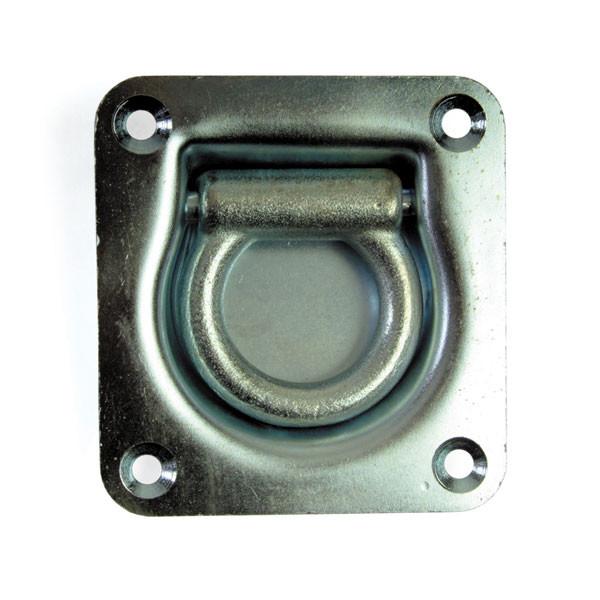

LR3 Recessed Lashing Ring
Couldn't load pickup availability
Recessed lashing ring.
Permissible tensile load 500 daN (Kg).
Zinc plated finish.
Fixing Plate Size: W=95mm x L=100mm
Recess Size: W=75mm x L=76mm, Depth=27mm
Ring thickness - 11mm
Inner diameter of the ring - 35mm
High tensile bolts required in all applications.
Fixing holes 4 x 7.3mm diameter.
