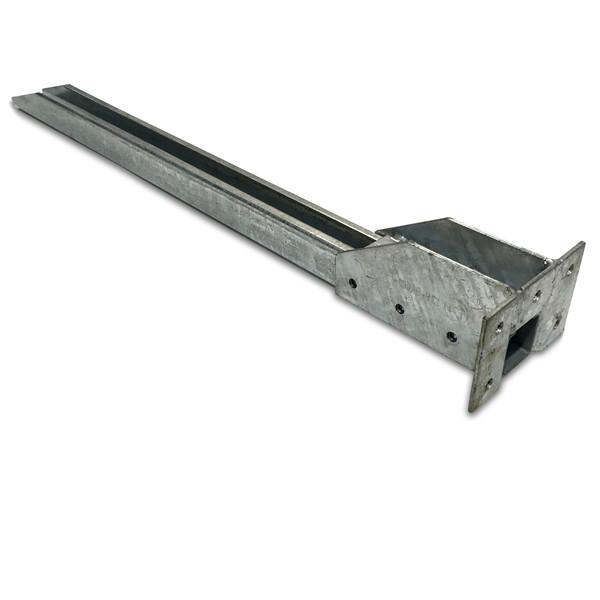

Chassis Mounted Sideguard Support Beam

Chassis Mounted Sideguard Support Beam.

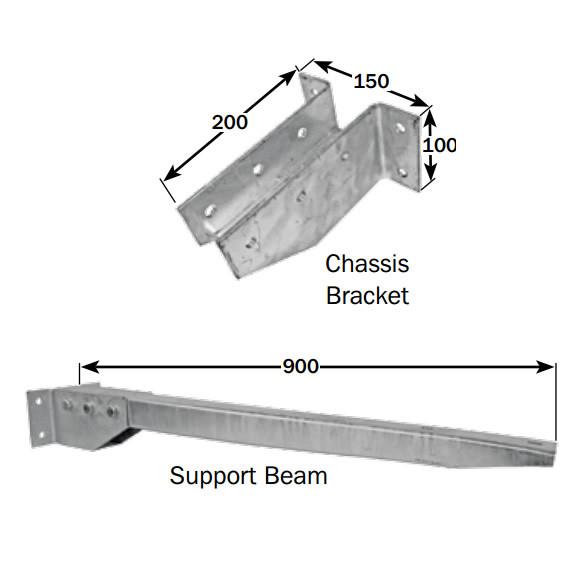

• Each kit consists of: 1 x Chassis Bracket W150 x D100 x L200mm 1 x Support Beam W53 x D50 x L900mm

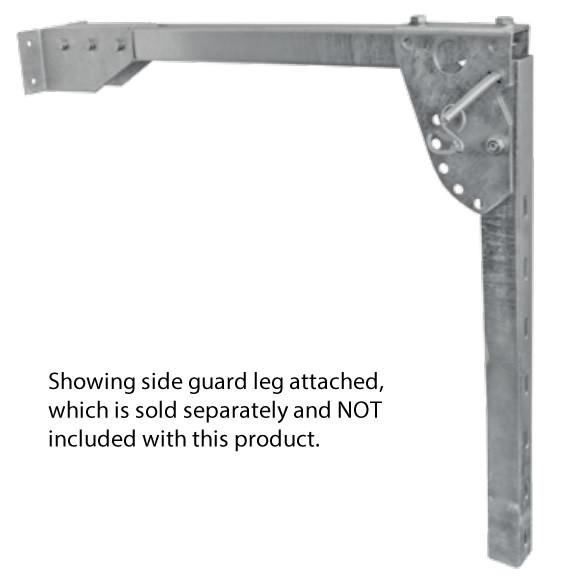

• UNECE Regulation 73 compliant when used in conjunction with ASGK990 Series hinged legs and sideguard rail
• Full documents available upon request l Ideally suited for fridge vehicles, tippers and where conventional hinged legs cannot be mounted
• Designed to suit standard chassis widths, (Support beam can be 'cut down' to the required length)
• Robust design
• Fully galvanized
• Excellent corrosion resistance – 500 Hours salt spray tested
• Full fitting instructions available upon request
